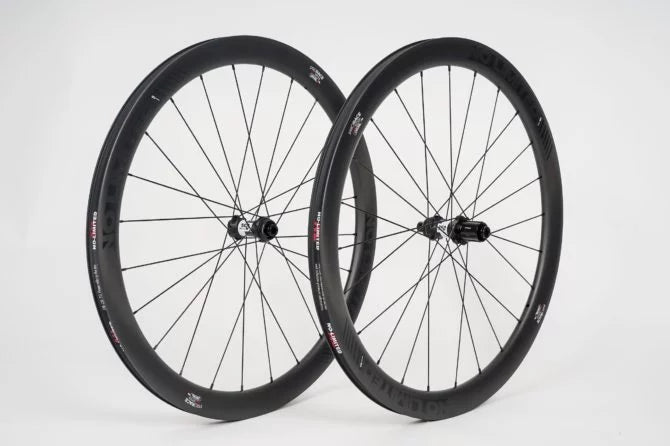

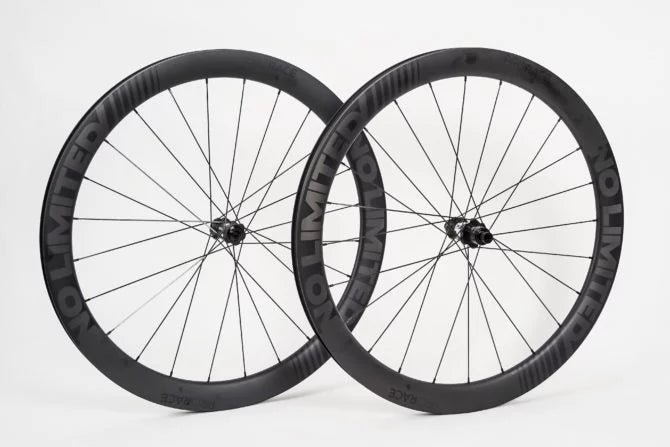

No Limited PRO RACE 49 Gravel disc SL wheels

The No Limited PRO RACE 49 gravel DISC SL is a race-ready wheel designed for riders seeking maximum speed, stiffness, and aerodynamics in the gravel arena. Featuring T800/T1000 carbon construction, a 49mm profile, and top-of-the-line DT Swiss components, it offers a competitive edge that translates into results.

No Limited PRO RACE 49 gravel DISC SL wheels

This model is built for speed and responsiveness, perfect for today's gravel racers.

Innovative design and advanced materials : Made from a combination of T800 and T1000 carbon fiber, the PRO RACE 49 DISC wheels are characterized by exceptional stiffness and incredibly low weight. The 49mm rims, with an internal width of 24mm and an external width of 31mm, combined with a modern U-shape, provide excellent aerodynamics and stability on a variety of trails. Designed for tires with a minimum width of 30mm or more.

Technology and Specifications : The wheels are equipped with ultra-light and reliable DT Swiss hubs, available in 350, 240, and 180 straight-pull ratchet 36t disc models. These hubs are proven in the pro peloton and are fully convertible, allowing for easy adaptation to various frame mounting systems and drivetrains, such as Sram XD, Shimano, Campagnolo, and Sram XDR 12 S.

Lightweight and aerodynamic : The wheel set weighs from 1260 grams for the tubular version and 1350 grams for the tire version. Sapim aerodynamic spokes, model CX Ray or D Light, 24 pieces front and rear, increase the efficiency and speed of the wheels.

Tire Optimization : The wheelset is aerodynamically optimized for tires ranging from 32 to 45 mm wide.

Compatibility and Mounting : The wheels are designed for tubular or tubeless tires, increasing ride comfort and reducing the risk of flats. Standard axle mounts (front 12 x 100 mm, rear 12 x 142 mm) ensure easy compatibility with modern road bikes. Centerlock disc mount.

Pro Race Series – A Favorite Choice for Pros and Ambitious Amateurs : The No Limited PRO RACE 49 gravel DISC wheel series is our flagship product line, appreciated by both professionals and advanced cycling enthusiasts. These mid-profile racing wheels are designed to meet the highest demands on both flat and mountainous terrain.

Summary : The No Limited PRO RACE 49 gravel DISC wheels are the perfect solution for riders looking for lightweight, efficient, and versatile wheels that will give them the edge on both mountain trails and flat roads. Thanks to advanced technologies and materials, these wheels offer unparalleled performance and are ready for any challenge.

SPECIFICATION:

Road wheels	No Limited Pro race 49 gravel disc SL
Size	28"
Rim type	Tubular or tire
Finish	UD
Rim height	49mm
Number of spokes front/rear	24 / 24
Hubs	DT Swiss 350 or 240 or 180 straight pull
Hub width	12×100 | 12×142 rear
Spokes	Sapim D light or CX Ray on DT Swiss 350: 1450g CX Ray hubs on DT Swiss 240: 1380g CX Ray hubs on DT Swiss 180: 1350g CX Ray hubs Change to D light spokes: +60 grams for each set
Weight of set	In tire version, wheels in tubular version – 90 grams lighter

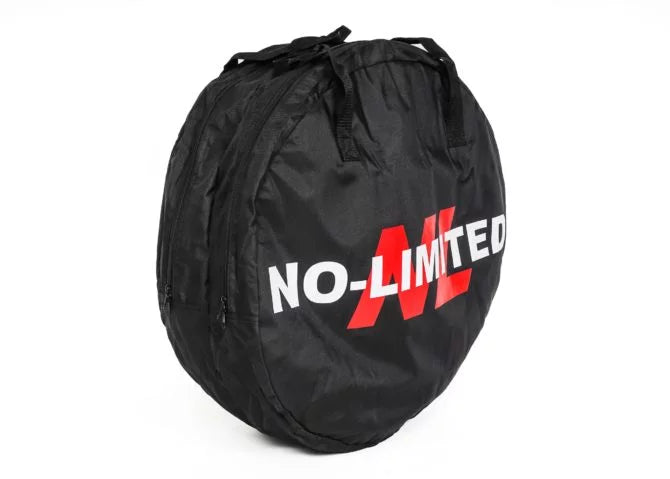

Wheel accessories	Optional covers
Weight Limit	110 kg
Color	Graphite



Hubs – personalize your wheels to suit your needs

In this wheel group, you can customize your hubs by choosing from models from the market-leading DT Swiss brand. Available hub models include the DT Swiss 350, 240, and 180 disc straight pull exp ratchet 36t.

All have been tested in the professional peloton, in straight-pull versions. These hubs are fully convertible – we can adapt them to any frame mounting system and to the specific drivetrain on your bike.

The front features a standard 12x100mm or 15x100mm thru-axle quick-release mount. The most popular rear mount is 12x142mm. Matching these hubs to your bike's freehub body is a breeze; replacement is very simple.

Whether you're running a Sram 9-10-11 with a 20-speed cassette, a Shimano 9-10-11 with a 12-speed cassette, or a Sram 12s, simply select an option in our configurator and we'll customize your wheels. Simple!

DT Swiss hubs are a popular choice among cyclists due to their high quality, reliability, and performance. The available models differ in several key features. To make your choice easier, we've compared them, focusing on the versions designed for disc brakes.

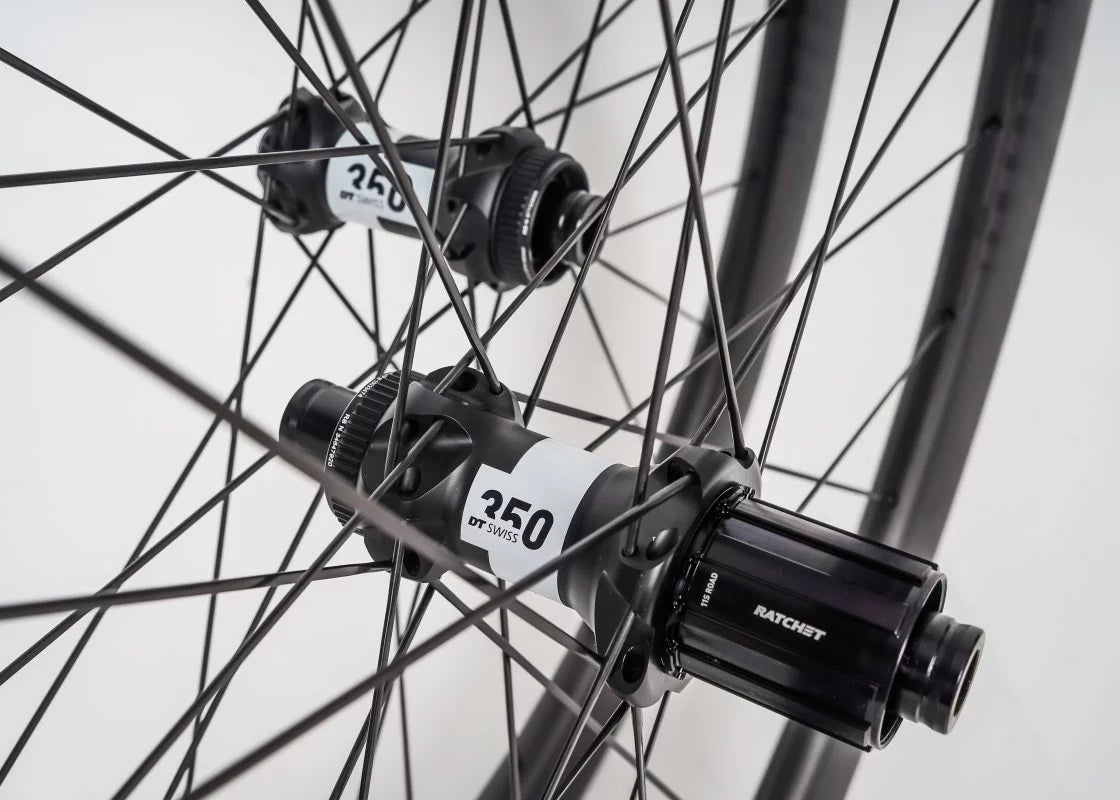

DT Swiss 350

• Price : 350 is a more economical option, offering good quality and performance at a relatively affordable price.
• Weight : They are heavier than the 240 and 180 models, which may be important for those looking for the lightest equipment possible.
• Ratchet System : Standard with an 18-tooth Ratchet System, which can be upgraded to 36 or 54 teeth for faster pedal response.
• Application : Perfect for cyclists looking for reliable, durable hubs for a wide range of uses, from MTB to road.

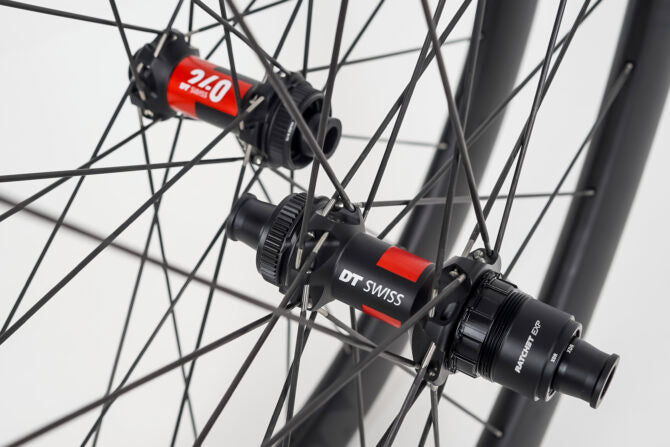

DT Swiss 240

• Price : The 240 is more expensive than the 350 model, but offers better performance and lower weight.
• Weight : Lighter than the 350, making them a good choice for riders looking to reduce bike weight without major compromises in durability.
• Ratchet System : Equipped with the improved Ratchet EXP ratchet system, which offers lighter weight, greater stiffness, and easier operation than the older system. A variety of ratchet options are available for customization.
• Application : Recommended for advanced cyclists and competitors who are looking to optimize every aspect of their equipment.

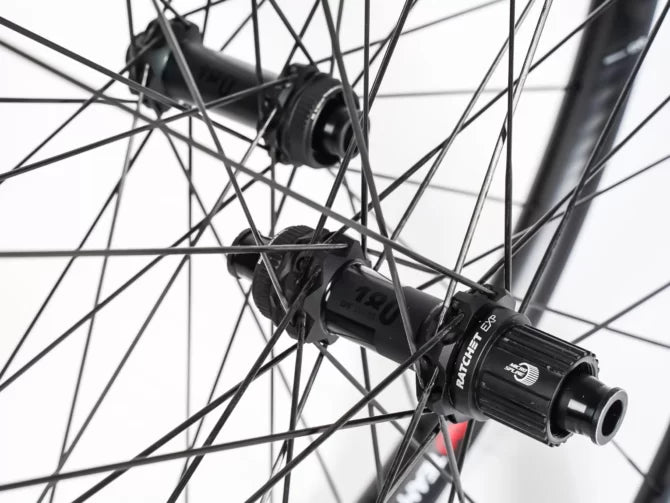

DT Swiss 180

• Price : 180 is the flagship model, the most expensive of the above, offering the best performance and the lowest weight.
• Weight : These are the lightest hubs in the range, using materials such as carbon fibre (in some parts) to further reduce weight.
• Ratchet System : Like the 240, they utilize the EXP Ratchet System, which is even lighter and more reliable by minimizing the number of moving parts.
• Application : Ideal for professionals and very serious amateurs who do not accept compromises on performance, weight and reliability.
